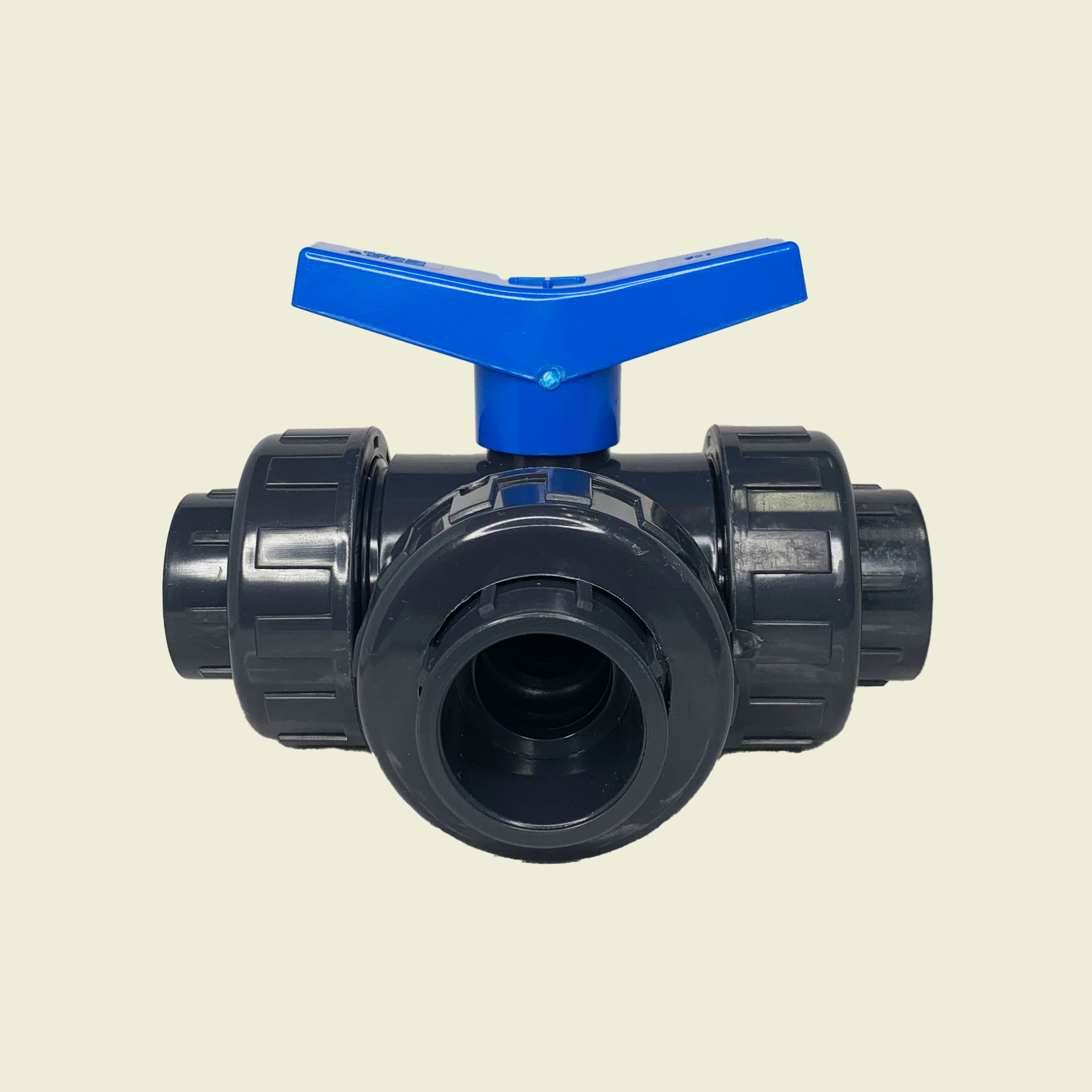

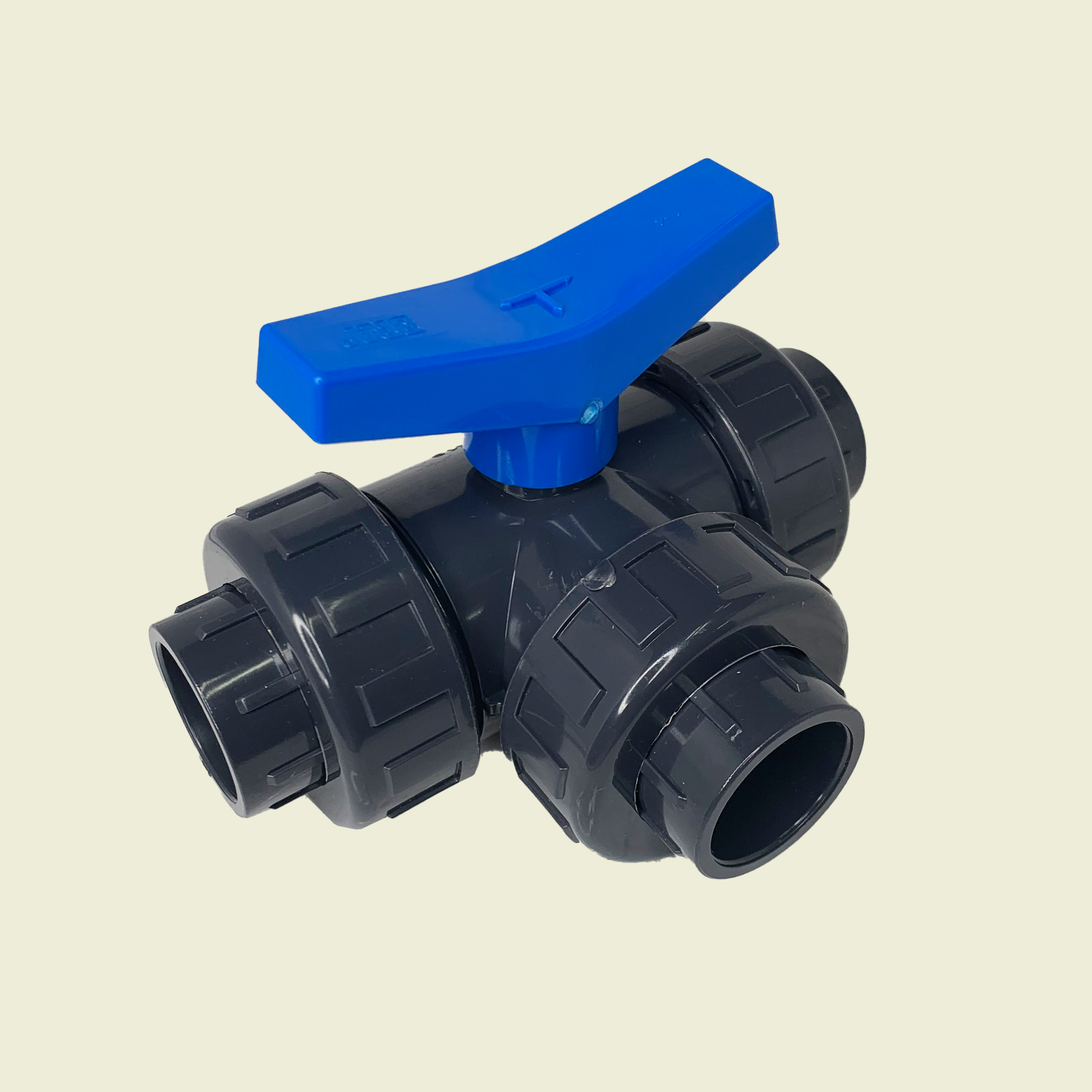

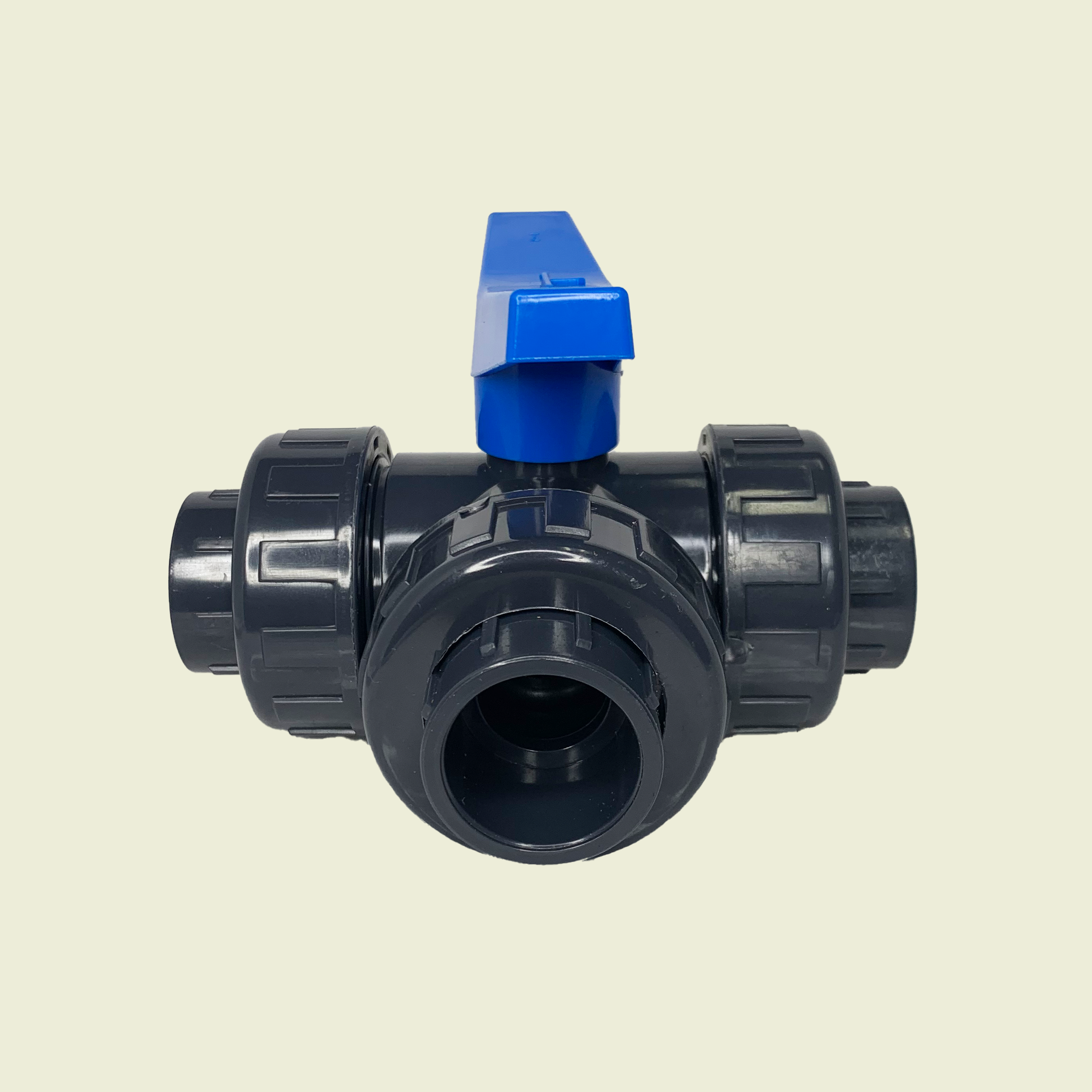

PVC 3-Way Union Ball Valve 1″

PVC 3-Way Union Ball Valve 1″

Product Specifications

• Size: 1 inch nominal diameter
• Material: PVC (Polyvinyl Chloride)
• Color: Dark gray body with blue handle
• Connection Type: True union socket connections
• Valve Type: 3-way ball valve, T-configuration
• Handle: Blue ergonomic handle for quarter-turn operation
• Standards: ASTM D1784, ASTM D2464
• Maximum Working Pressure: 150 PSI @ 73°F (non-shock)
• Temperature Range: 33°F to 140°F (0.5°C to 60°C)
• Chemical Resistance: Excellent resistance to acids, bases, salts, and most solvents
• Seal Material: EPDM O-rings

Technical Details

This 1″ PVC 3-way union ball valve features a T-configuration for flow diversion and isolation in multiple piping paths. The true union design allows for easy removal and maintenance without cutting or disturbing the piping system. The valve operates with a quarter-turn mechanism, providing quick on/off control and flow direction changes.

The pressure rating decreases approximately 0.5% for each 1°F increase in temperature above 73°F. The union connections use EPDM O-rings to ensure leak-free service even with repeated assembly/disassembly. Not suitable for compressed air or gas applications.

Applications

• Water distribution systems
• Irrigation systems
• Chemical processing
• Pool and spa plumbing
• Industrial fluid handling
• Aquaculture systems
• Wastewater treatment
• Directional flow control

Installation Notes

Apply PVC primer and cement to socket ends according to manufacturer’s instructions. Hand-tighten union nuts only – do not use pipe wrenches or over-tighten. Allow 24 hours curing time before pressure testing. Support valve properly to prevent stress on connections.
